All or Nothing (AON) AssignmentTrip Assignment

All or Nothing Assignment

Theory

The simplest route choice and assignment method is All-or-nothing assignment. This method assumes that there are no congestion effects, that all drivers consider the same attributes for route choice and that they perceive and weigh them in the same way. The absence of congestion effects means that link cost are fixed; the assumption that all drivers perceive the same costs means that every driver from i to j must choose the same route. Therefore, all drivers are assigned to one route between i and j and no driver is assigned to other, less attractive, routes. These assumptions are probably reasonable in sparse and uncongested networks where there are few alternative routes and they are very different in cost.

The assignment algorithm itself is the procedure that loads the matrix T to the shortest path trees and produces the flows V_{A, B} on links (between nodes A and B). All load algorithms start with an initialization stage, in this case making all V_{A, B} = 0 and then apply one of two basic variations: pair-by-pair methods and once -through approaches..

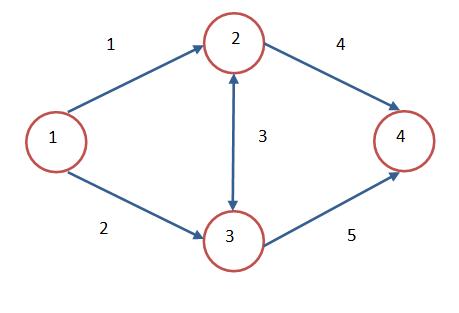

For origin: 1      destination: 2      Flow: 100
Possible path Travel Time Shortest path
1-2 10  1-2


Flow on link 1 = 100

For origin: 1      destination: 3      Flow: 200
Possible path Travel Time Shortest path
1-3 15  1-3


Flow on link 2 = 200

For origin: 1      destination: 4      Flow: 500
Possible path Travel Time Shortest path
1-2-4 10 + 20 = 30  1-2-4
1-3-4 15 + 30 = 45  1-3-4
1-2-3-4 10 + 5 + 30 = 45  1-2-3-4


Flow on link 1 = 100 + 500 = 600 Flow on link 4 = 500

For origin: 2      destination: 3      Flow: 400
Possible path Travel Time Shortest path
2-3 5 2-3


Flow on link 3 = 400

For origin: 2      destination: 4      Flow: 300
Possible path Travel Time Shortest path
2-4 20  2-4


Flow on link 4 = 500 + 300 = 800

For origin: 3      destination: 4      Flow: 600
Possible path Travel Time Shortest path
3-4 30  3-4

Flow on link 5 = 600

• J. De D. Ortuzar and L.G. Willumsen (1996), Modelling Transport. Wiley Publications, London.
• Y. Sheffi (1985), Urban Transportation Networks: Equilibrium Analysis with Mathematical Programming Methods. Prentice-Hall Inc., Englewood Cliffs, New Jersey.
